RDS Alpha Beta Simulator Probe | CBRNe HazMat training

LUDLUM MEASUREMENTS INC.

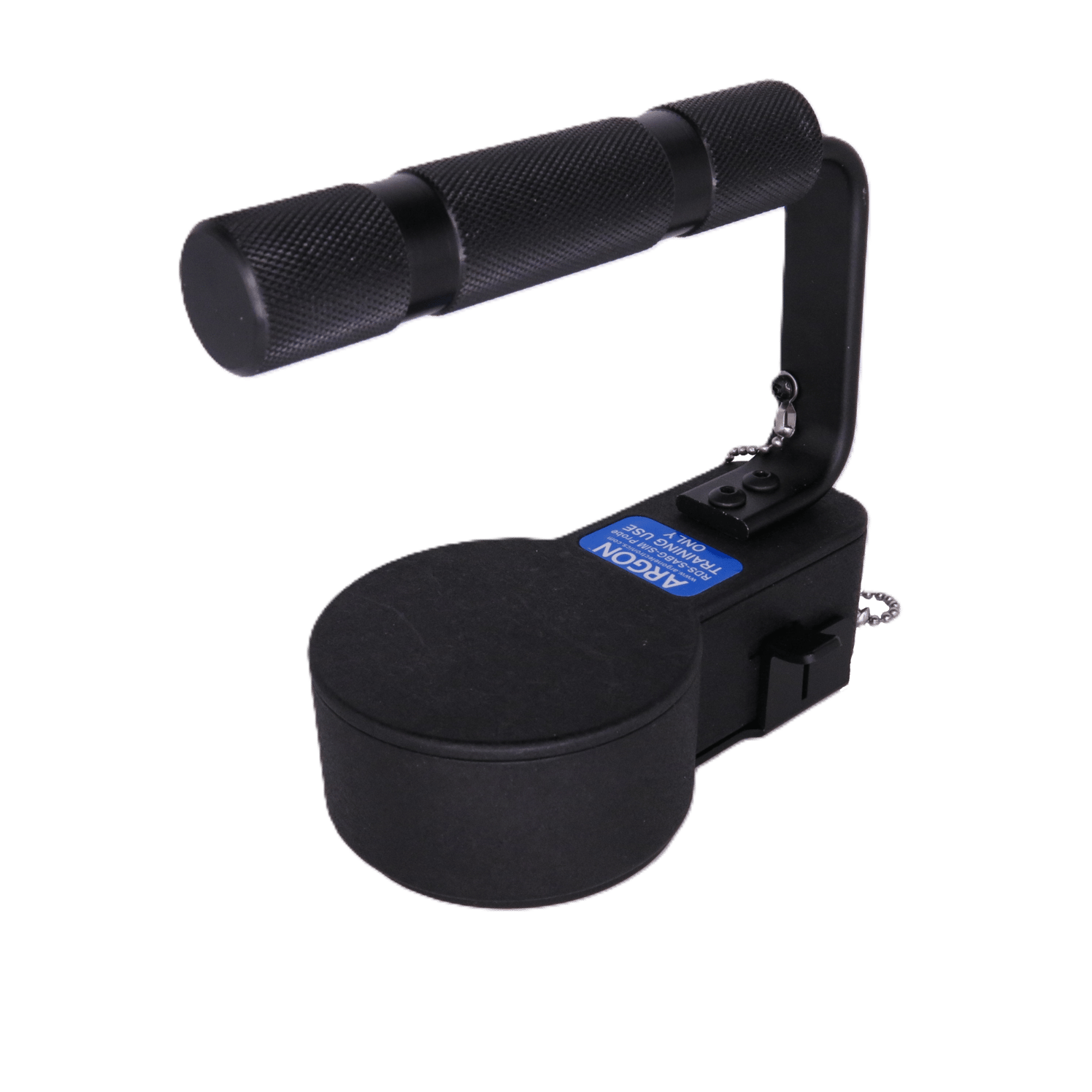

Small Area Beta Gamma Probe Simulator

The Ludlum Measurements Inc. Small Area Beta Gamma (SABG) radiation simulator probe has been designed to work with Argon's simulation RDS AN/PDR-83 SIM base unit.

The simulation SABG Probe can be "hot connected" directly to the Simulation RDS AN/PDR-83 SIM base unit by flexible cable, showing the probes reading on the base unit.

Advanced Radiation Training

You can "hot connect" and disconnect the simulation Small Area Beta Gamma Probe - no need to turn the simulation RDS AN/PDR-83 SIM base unit off, and most impressively the base unit display screen splits into Beta and Gamma reading windows just like the real instrument.

The Simulation SABG Probe responds to Argon’s discrete radiological simulation sources to deliver highly realistic surface contamination training. Its easy-to-use instructor remote enables the simulation of partial or full decontamination for more flexible and effective training scenarios.

Key features include:

Beta contamination and Gamma survey simulation.
Uses small and discreet simulation contamination sources.
Responds to RadSIM GS4 simulation Gamma Source.
Responds to Beta and Gamma Simulation check source.
Simulates RDS AN/PDR 83 'tick' and RadHealth functions.
Simulate partial and full decontamination using the instructor controller.
Inverse square law (1/r2) response within real detector tolerance.
Simulation of user body shielding for source location.
Realistic representation of different shielding effects.
No regular calibration.
No preventative maintenance.
PlumeSIM compatible for Tabletop and wide area field exercises.
Compatible with other Argon radiological simulators.

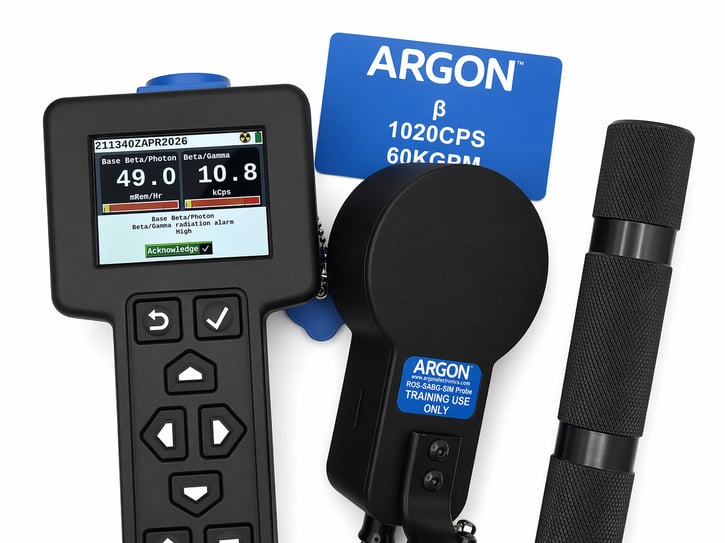

RFID sources are avaiable for realistic contamination simulation

The source set can simulate:

Beta High count
Beta Low count

Small and discreet, these sources can be easily concealed within clothing and objects, or non-metallic under surfaces to support a variety contamination training scenarios.

PlumeSIM compatible

The Simulation RDS AN/PRD-83 Alpha Beta Probe is compatible with PlumeSIM, Argon’s proven Live Field and Tabletop CBRN exercise system. Used by many of the world’s leading training facilities, PlumeSIM enables real-time, instrumented wide-area tactical field exercises and nuclear, HazMat, and chemical warfare emergency response training using one or multiple simulation devices that respond in real time to simulated hazards.
